Zgonic ZGX-DS Dual Monitor Arm with Crossbar and Handle – Black, White or Silver

Zgonic ZGX-DS dual monitor arm with crossbar and handle, black, white or silver

Two screens on one Zgonic dynamic arm: a crossbar with a grab handle carries both, so the pair lifts, lowers and swings together and stays edge to edge, with 674 mm of reach and 290 mm of vertical travel. Zgonic rates it for two screens of 3 to 4.6 kg each, up to 27 inches, which covers most office 24 and 27-inch monitors. Dial-Stop at the base limits the swivel to 180 or 360 degrees, each head has 12 degrees of inward or outward angle and rotates to portrait, and the quick-release mount lets it convert to a ZG1-DS single or ZG2-DS dual. Zgonic is an Australian company based in Port Melbourne and publishes a 10-year warranty.

Features

• Two screens on one arm via a crossbar with grab handle; both move together
• 3–4.6 kg per screen (Zgonic's table; page summary says 5 kg), up to 27 inches each
• Extended reach 674 mm from the desk edge; vertical range 290 mm
• Dial-Stop 180°/360° swivel; dual rotation stops at the centre and rear joints
• Two quick-release VESA plates 75 × 75 / 100 × 100 mm; 90° portrait pivot; tilt 20° / 20°; 12° in/out viewing angle per screen
• Quick-release mount: converts to a ZG1-DS single or ZG2-DS dual
• Semi-concealed cable management; crossbar in white or black; magnetic side panels

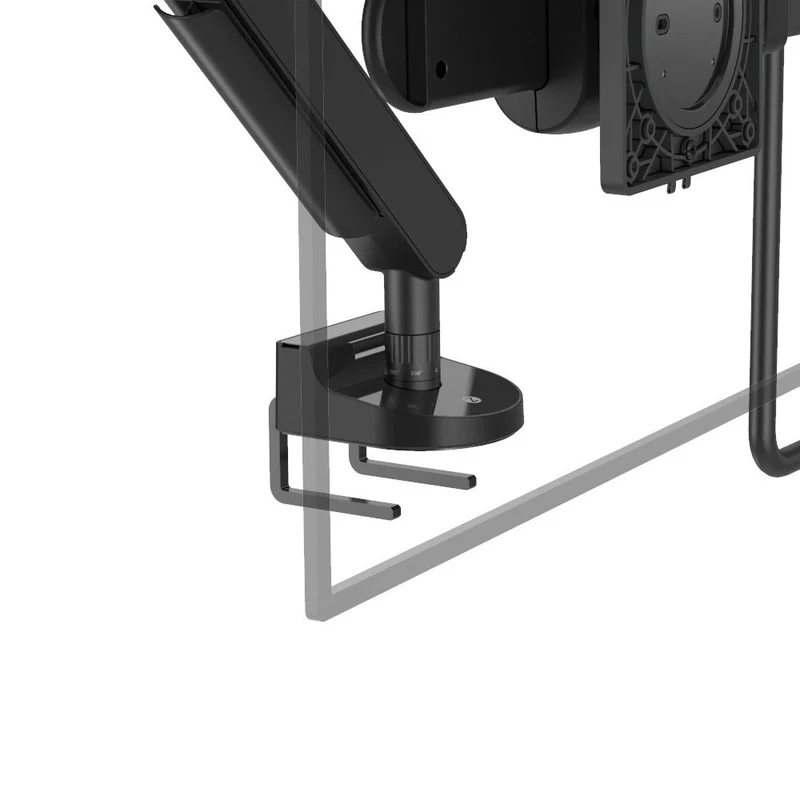

• Top-down desk clamp, 16–33 mm or 33–50 mm tops; universal-rail, two-piece and bolt-through clamps to order
• 29% recycled and 99% recyclable content; Australian company (Port Melbourne); limited 10-year warranty

Specifications

From Zgonic's product page and brochure; where the two differ, the specification-table figure is shown and the other noted.

• Screens: 2 on one crossbar; 3–4.6 kg each (table; page summary 5 kg); up to 27 inch each
• VESA: 75 × 75 / 100 × 100 mm
• Reach: 674 mm; vertical range 290 mm
• Swivel 360° with 180° Dial-Stop; pivot 90° CW; tilt +20° / −20°; 12° in/out per screen
• Desk thickness: 16–33 or 33–50 mm (top-down clamp)
• Warranty: limited 10 years (Zgonic)

Warranty: Zgonic publishes a standard 10-year warranty on the ZGX-DS: it repairs or replaces a product that does not perform to its specifications, excluding consumables, cosmetic damage and misuse. Claims go to Zgonic Support ([email protected]) with proof of purchase; call Chair Dinkum in Sydney on 02 9640 0642 and we will help you lodge it. Full terms are on Zgonic's warranty page and our warranty page. Australian Consumer Law rights apply in addition.
