Zgonic ZG1-DS Single Monitor Arm – Black, White or Silver

Zgonic ZG1-DS single dynamic monitor arm, black, white or silver

Zgonic's single dynamic arm with Dial-Stop: a counterbalanced arm that carries one screen of 3 to 11 kg with 600 mm of reach and 290 mm of vertical travel, holds it wherever you leave it, and has a patent-pending dial at the base that limits the swivel to 180 degrees where a wall sits behind the desk. The top-down clamp is fitted from above the desk by one person; the quick-release VESA plate and quick-release mount mean a screen swap is a lift-off and the arm can later become a ZG2-DS dual or a ZGX-DS crossbar. Zgonic is an Australian company based in Port Melbourne and publishes a 10-year warranty.

Features

• Patent-pending Dial-Stop: 180° or 360° arm swivel range selected at the base
• 3–11 kg screen; 17–34 inches (Zgonic's table; brochure to 38 inches; weight governs)
• Extended reach 600 mm from the desk edge; vertical range 290 mm

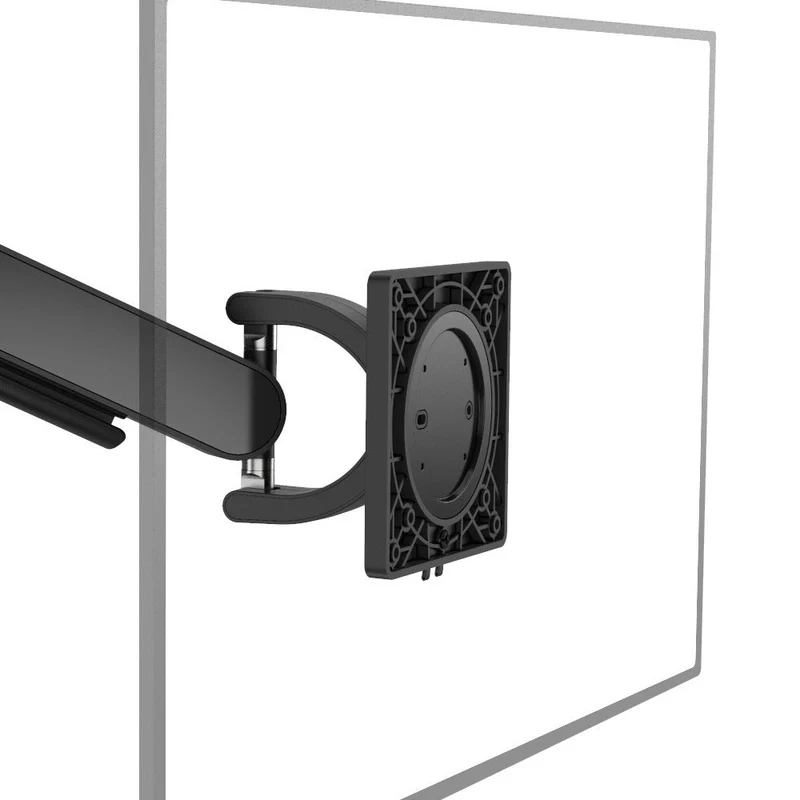

• Quick-release VESA plate 75 × 75 / 100 × 100 mm; 360° pivot; tilt forward 20° / backward 35°
• Quick-release mount: upgradeable to a ZG2-DS dual or ZGX-DS crossbar
• Semi-concealed cable management in the upper and lower arm; magnetic side panels, custom colours or logos to order

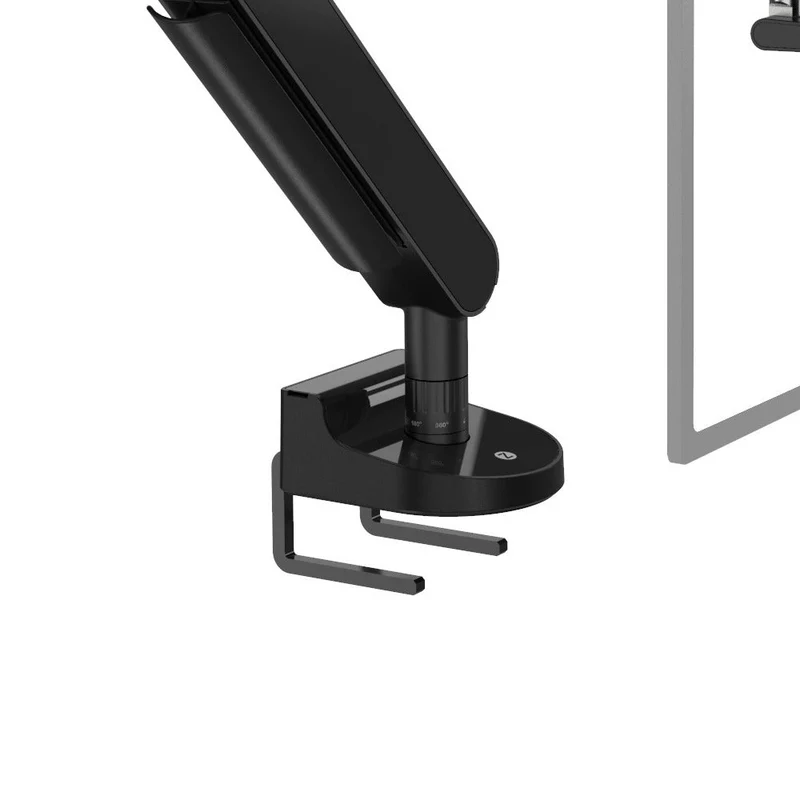

• Top-down desk clamp, 16–33 mm or 33–50 mm tops; universal-rail, two-piece and bolt-through clamps to order
• 29% recycled and 99% recyclable content; Australian company (Port Melbourne); limited 10-year warranty

Specifications

From Zgonic's product page and brochure; where the two differ, the specification-table figure is shown and the other noted.

• Screen weight: 3–11 kg; size 17–34 inch (table) / to 38 inch (brochure)
• VESA: 75 × 75 / 100 × 100 mm
• Reach: 600 mm; vertical range 290 mm
• Swivel 360° with 180° Dial-Stop; pivot 360°; tilt +20° / −35°
• Desk thickness: 16–33 or 33–50 mm (top-down clamp)
• Warranty: limited 10 years (Zgonic)

Warranty: Zgonic publishes a standard 10-year warranty on the ZG1-DS: it repairs or replaces a product that does not perform to its specifications, excluding consumables, cosmetic damage and misuse. Claims go to Zgonic Support ([email protected]) with proof of purchase; call Chair Dinkum in Sydney on 02 9640 0642 and we will help you lodge it. Full terms are on Zgonic's warranty page and our warranty page. Australian Consumer Law rights apply in addition.
