Humanscale M8.1 Monitor Arm – Black or Polished Aluminium with White Trim

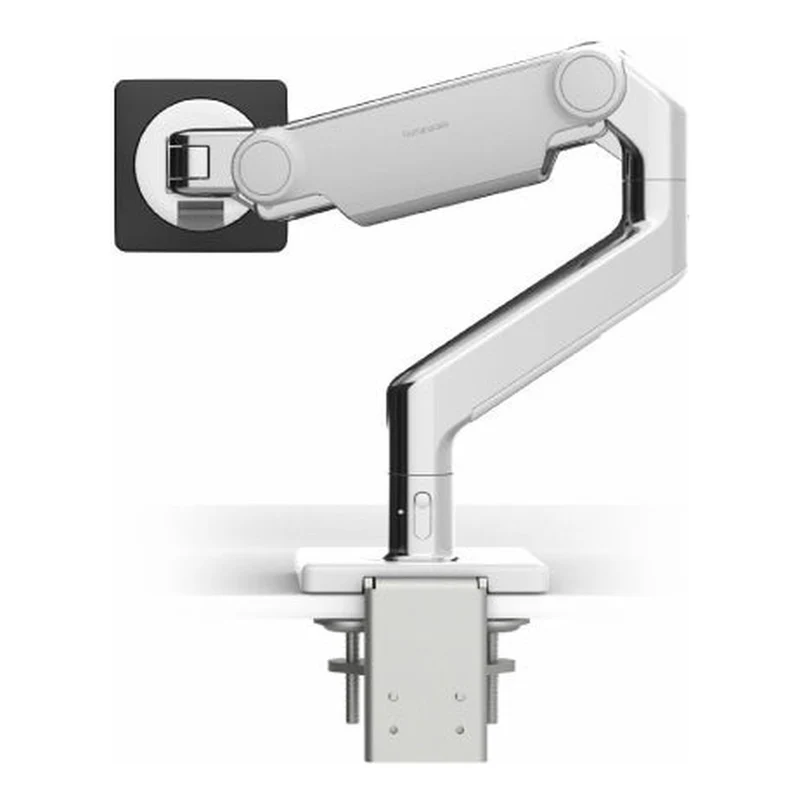

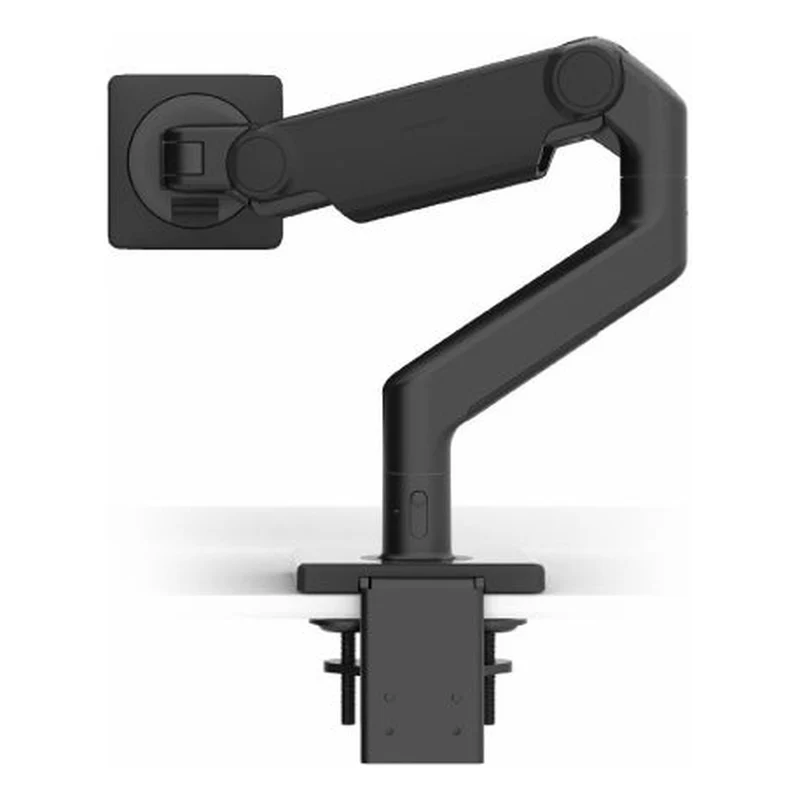

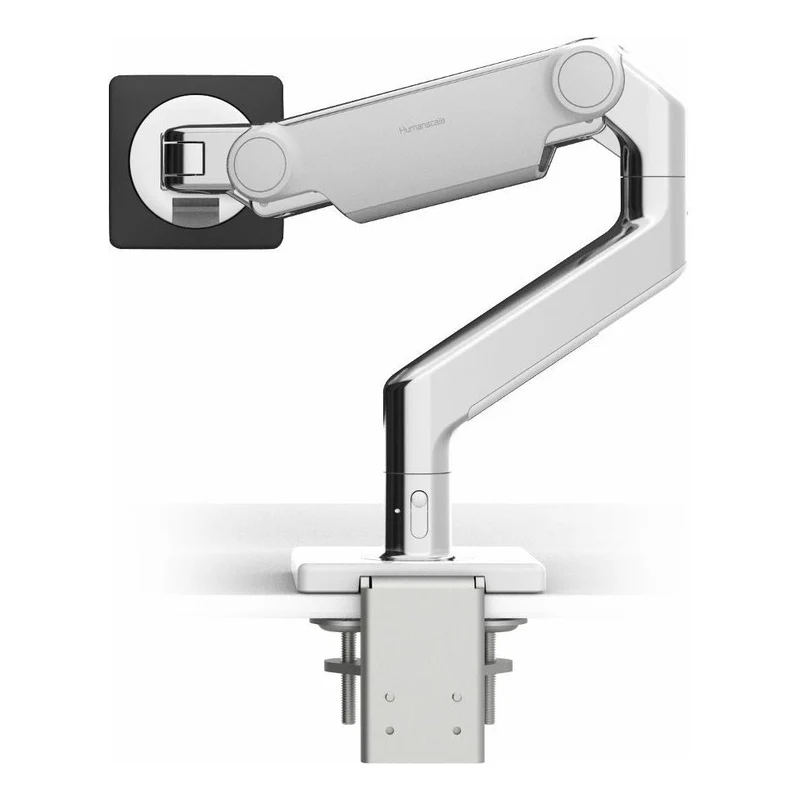

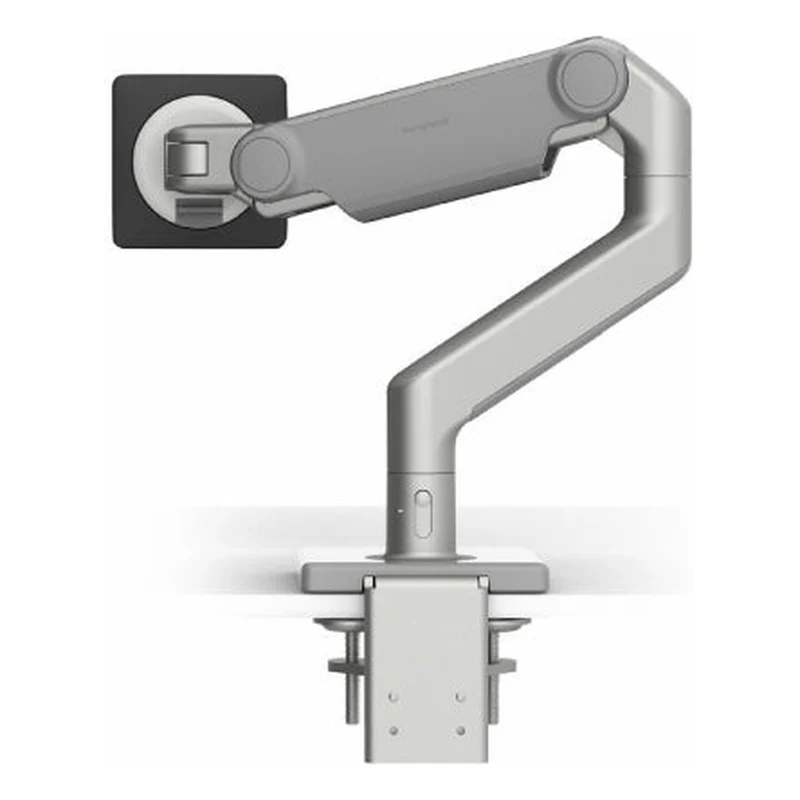

Humanscale M8.1 monitor arm, black or polished aluminium with white trim

A heavy-duty single arm for one flat screen of 2.7 to 12.7 kg, with Humanscale's patented Weight-Compensating Spring so the screen moves with a fingertip and holds position without knobs, Smart Stop to limit rotation, and cable management inside the arm. Reach 539 mm; the VESA plate sits 252 to 449 mm above the desk. On the standard clamp mount in black, or polished aluminium with white trim.

The M8.1 is the previous generation of Humanscale's heavy-duty M-series arm. Its successor is the M8 Pro, with 79% more capacity (4.1 to 22.7 kg) and Quick Release joints; Humanscale has announced the M8.1 and M10 are discontinued from the end of Q1 2026, with parts and warranty support continuing. This listing is supplied from Humanscale Australia's stock.

Features

• One flat monitor 2.7–12.7 kg (6–28 lb); offset accessory 2.7–9 kg (Humanscale weight capacity guide v20240301)
• Humanscale Weight-Compensating Spring Technology: fingertip adjustment, holds position
• Smart Stop adjustable rotation limit; integrated cable management
• Reach 539 mm; VESA plate 252–449 mm above the desk, 579 mm extended; clamp 98 mm (Humanscale dimension drawing)
• Standard 100 × 100 / 75 × 75 mm VESA plate with tilt and landscape-to-portrait rotation
• Two-piece clamp mount supplied; bolt-through and sliding desk clamps available to order
• Black with black trim (M81BTBC) or polished aluminium with white trim (M81BTWC)

Specifications

Capacities are from Humanscale's M8.1 weight capacity guide (v20240301); dimensions from Humanscale's M8.1 drawing. Humanscale's current M8 Pro is listed under the same item code M81BTBC on its Australian configurator; this listing is the M8.1.

• Screen weight: 2.7–12.7 kg, flat
• Reach: 539 mm
• VESA height above desk: 252–449 mm
• VESA: 100 × 100 / 75 × 75 mm
• Mount: clamp (supplied)
• Warranty: 15 years (Humanscale)

Warranty: Humanscale's published warranty for this monitor arm is 15 years. Chair Dinkum is a Humanscale dealer; bring any claim to us in Sydney on 02 9640 0642 and we lodge and manage it with Humanscale. Full terms are on our warranty page. Australian Consumer Law rights apply in addition.
